  • MDC-V4020

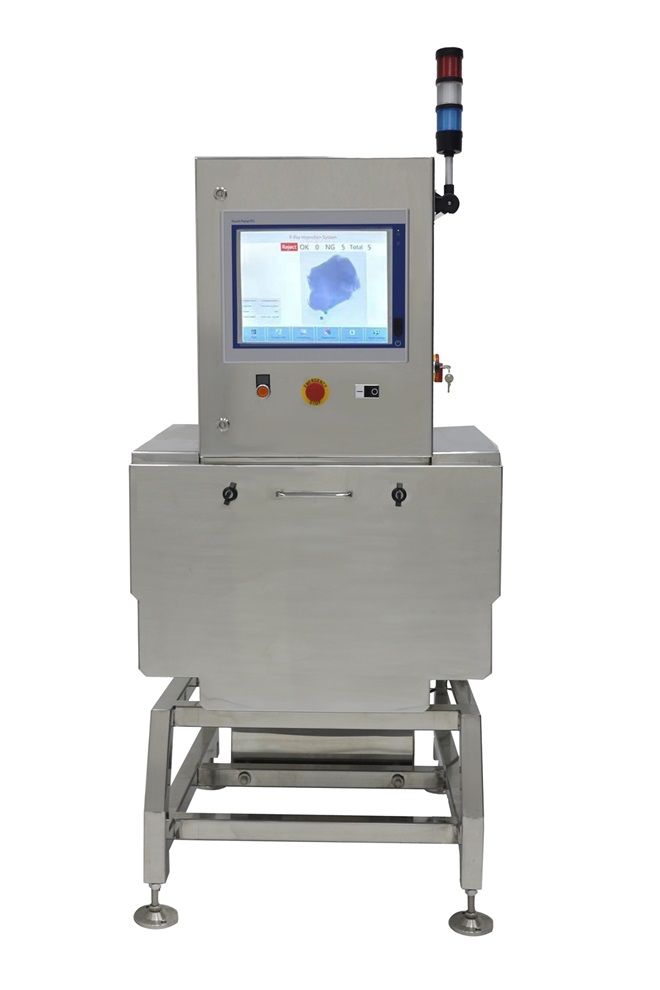

MDC-V4020

MDC-V4020

Detectable: metal, glass, stone, bone, rubber, plastic.

Especially suitable for aluminum foil packaging detection.

Universal model, high cost performance.

High tunnel


Features

Features:

All main components are imported for guaranteeing the reliability and stability of the machine

Intelligent image processing technology with a variety of advanced algorithms to assure the high sensitivity

Windows operation system,friendly operation

interface with Multi-language

Self-learning function of the product,Simply and fastly make setting

Multiple safety locks to fully protect the operator

Perfect data management system to achieve the easy saving of the product and image record, USB data output

Variety automatic reject option

Quick disassembly, Easily cleaning and replacement of conveyors belts

Snakepit-design conveyor and waterproof design for daily cleaning


Specifications


Model

MDC-V4020

Max. sensitivity

Fe/SUS ball 0.4mmm, SUS Wire 0.2*5mm, Quartz ball 1.5mm

Max. tube voltage

90kV

Max. tube current

3mA

Max. tube power

150W

Rated leakage

Less than 1uSv/h

HMI

15 inches touch screen

Belt with

420mm

Available detection width

400mm

Recipe memory

Max. 100

Conveyor payload

Max. 10kg

Rejector type

Air blast/pusher/flap/Drop off

Power supply

AC 110/220, 50/60Hz, single phase

Rated power

Appr. 1.2kw

Dimension

1048mm(L)*800mm(W)*2002+100mm(H)

Net weight

220kg

Operation condition

0~40 degree Celsius, humidity 30~85% (without condensation)

Protection level

IP66 (conveyor)

Body material

SUS304

Surface processing

Mirror/brush
