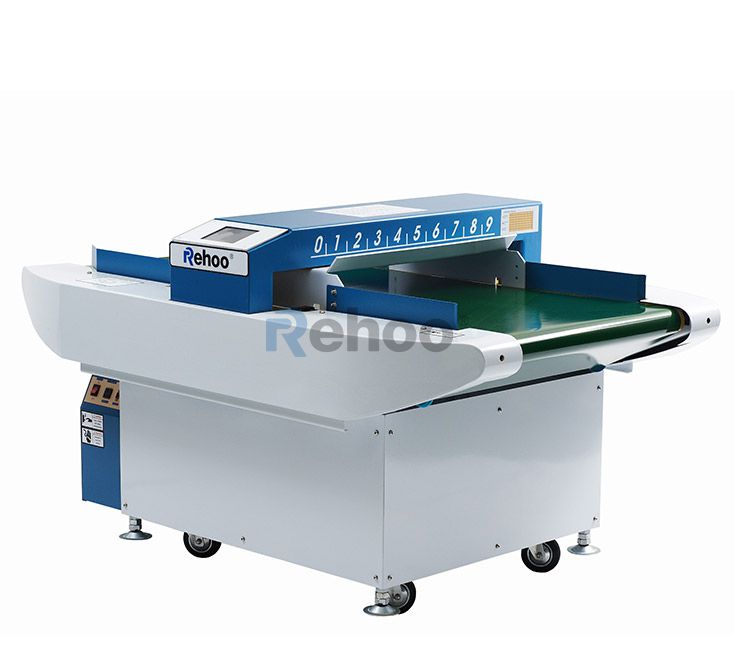

Needle Detector NDC-D


Designed for textile and garment industry


● Cycled magnetic sensor, excellent anti-disturbance performance.

● The core system and part of digital signal processing are based on high speed 32bit RISC CPU

● Use touch screen technology and based on multi- language operation system

● Accurate metal or needle chips locating technology, many customers define fuctions, easy to use

● Individual sensiblity adjusting for every channel, fit for more products detecting

● Smart report system,provide kinds of report

● The control systems are based on Rs-485 bus technology

● Installed machine state indicator and operator guider which are based on matrix LED display technology.


Detection methodMagnetic induction
Detection sensitivity0.8mm steel to small scissors
Detection adjustmentMax.100 steps/channel
Detection width650mm
Alarm methodBuzzer, LED indicator
Belt speed32m/min(50Hz), 40m/min(60Hz)
Power souceAC100-240V 50-60Hz
Rated outputAppr.140W


HeightDetection SensibilityRemark
100mm0.8mm steel to small scissors Standard type
120mm1.0mm steel to small scissorsOption at factory
150mm1.2-1.5mm steel to small scissorsOption at factory
200mm1.5-2.0mm steel to small scissorsOption at factory
