  • MDC-V4015

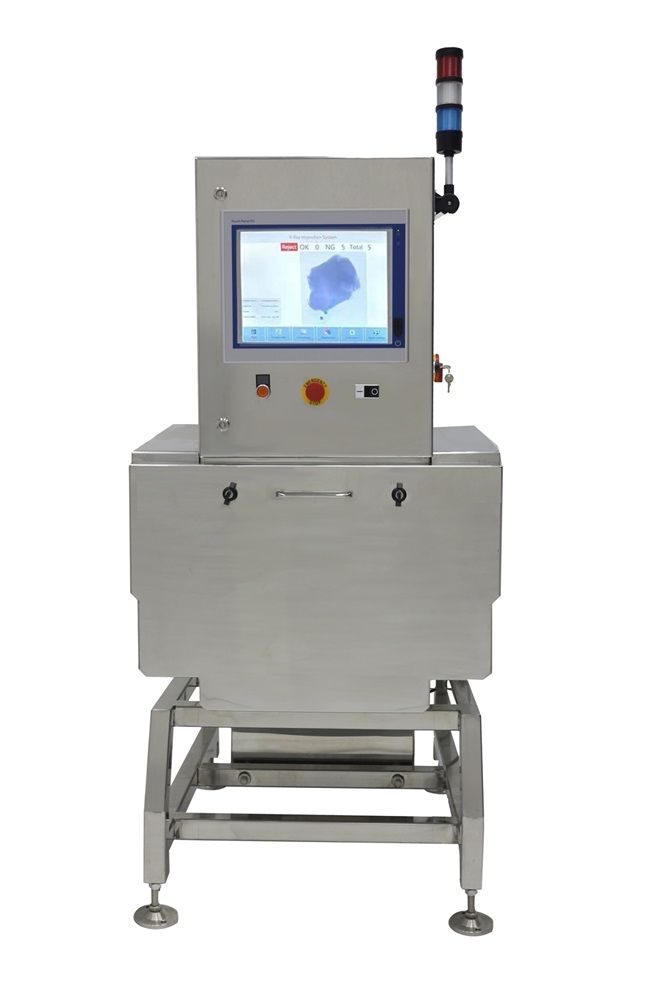

MDC-V4015

MDC-V4015

Detectable: metal, glass, stone, bone, rubber, plastic.

Especially suitable for aluminum foil packaging detection.

Universal model, high cost performance.



Features

Features:

All main components are imported for guaranteeing the reliability and stability of the machine

Intelligent image processing technology with a variety of advanced algorithms to assure the high sensitivity

Windows operation system,friendly operation

interface with Multi-language

Self-learning function of the product,Simply and fastly make setting

Multiple safety locks to fully protect the operator

Perfect data management system to achieve the easy saving of the product and image record, USB data output

Variety automatic reject option

Quick disassembly, Easily cleaning and replacement of conveyors belts

Snakepit-design conveyor and waterproof design for daily cleaning



Detectable: metal, glass, stone, bone, rubber, plastic.

Especially suitable for aluminum foil packaging detection.

Universal model, high cost performance.


Specifications

Model

MDC-V4015

Max. Sensitivity

Metal ball Ø0.4mm,Metal wireØ0.2*5mm,Quartz ballØ1.5

Max. Tube voltage

90kV

Max. Tube current

0.2~3mA

Max. Output power

150W

Radiate leakage

Less than 1μ Sv/h

HMI

15inch colorful touch screen

Tunnel size

400mm(W)*150mm(H)

Belt width

420mm

Available detection width

400mm

Product preset

100pcs

Transport Device

Belt speed max 80m/min;max load weight 10kg

Rejection Deviceoptional

Reject Air jet/push reject/flapper/reject/drop reject

Alarm

Alarm Buzzer&lamp

Power Supply

AC220V、Single-phase50/60Hz

Rated output

Appr.1kw

Dimension

1048*mm(L)* 800mm(W)* 1922+100mm(H)

Machine Weight

200kg

Environmental Requirement

0~40 degree Celsius, humidity 30-85% (without condensation)

Protection Grade

IP66 (conveyor)

Construction

SUS304

Surface Treatment

Polishing/Brush
