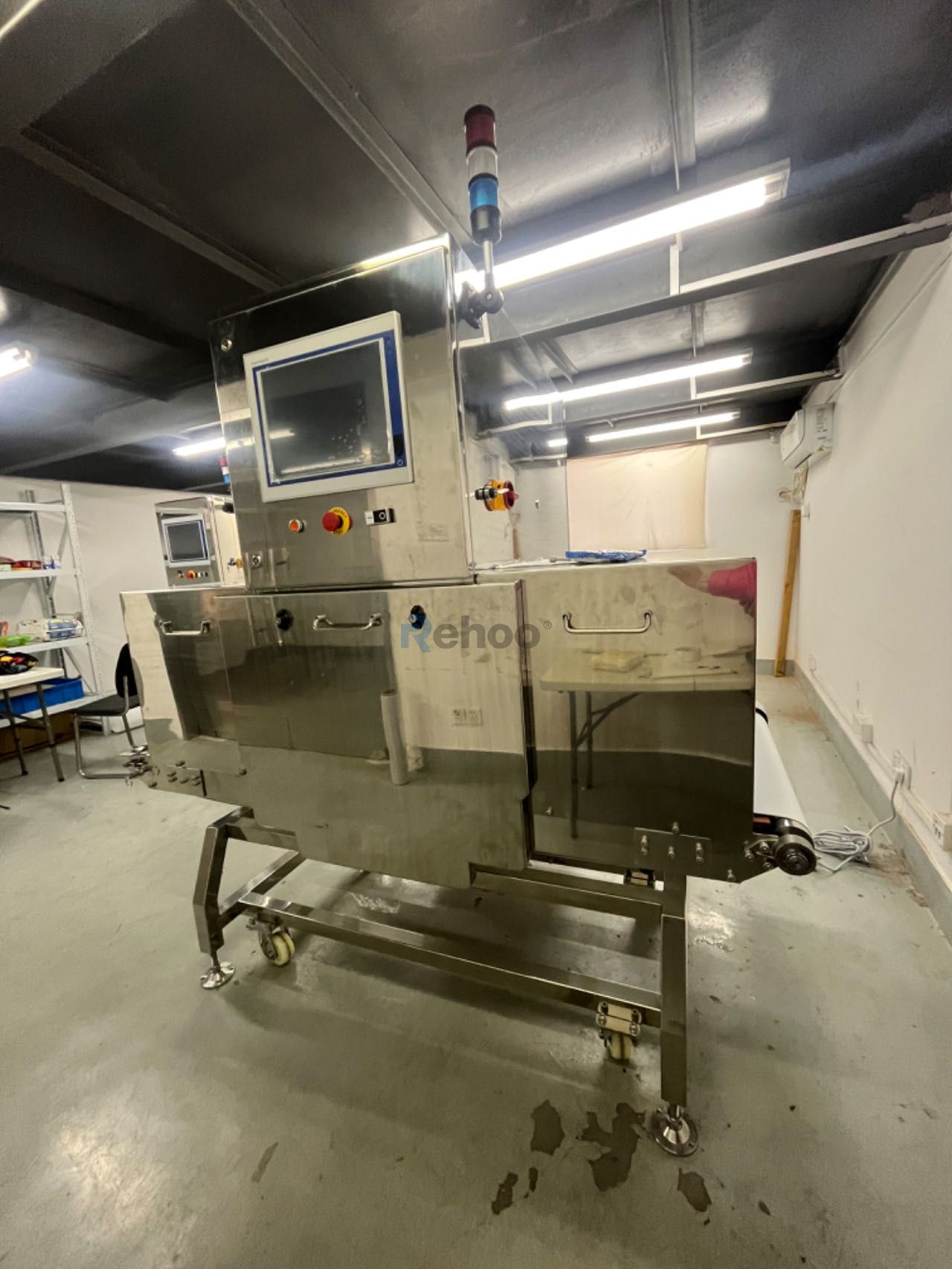

MDC-V5030
MDC-V5030
Detectable: metal, glass, stone, bone, rubber, plastic.
Especially suitable for aluminum foil packaging detection.
Large tunnel design
Features
Features:
●All main components are imported for guaranteeing the reliability and stability of the machine
●Intelligent image processing technology with a variety of advanced algorithms to assure the high sensitivity
●Windows operation system,friendly operation
interface with Multi-language
●Self-learning function of the product,Simply and fastly make setting
●Multiple safety locks to fully protect the operator
●Perfect data management system to achieve the easy saving of the product and image record, USB data output
●Variety automatic reject option
●Quick disassembly, Easily cleaning and replacement of conveyors belts
●Snakepit-design conveyor and waterproof design for daily cleaning
Specifications
Model | MDC-V5030 |
Sensitivity | Metal ball Ø0.4mm,Metal wireØ0.2*5mm,Quartz ballØ1.5 |
Tube voltage | 30～90kV |
Tube current | 1.5～5mA |
Output power | 210W |
X-ray leakage | Less than 2μ Sv/h |
Operation | 15inch colorful touch screen |
Tunnel size | 500mm（W）*300mm（H） |
Belt width | 520mm |
Working width | 500mm |
Product preset | 100pcs |
Transport Device | Belt speed max 80m/min；max load weight 15kg |
Rejection Device（optional） | Reject Air jet/push reject/flapper/reject/drop reject |
Alarm | Alarm Buzzer&lamp |
Power Supply | AC220V、Single-phase50/60Hz |
Rated output | Appr.1kw |
Dimension | 1790*mm（L）* 1236mm（W）* 1837mm（H） |
Machine Weight | 350kg |
Environmental Requirement | 0-35℃ ，Relative humidity 30 ~ 85% (no condensation) |
Protection Grade | IP65 |
Construction | SUS304 |
Surface Treatment | Polishing/Brush |
