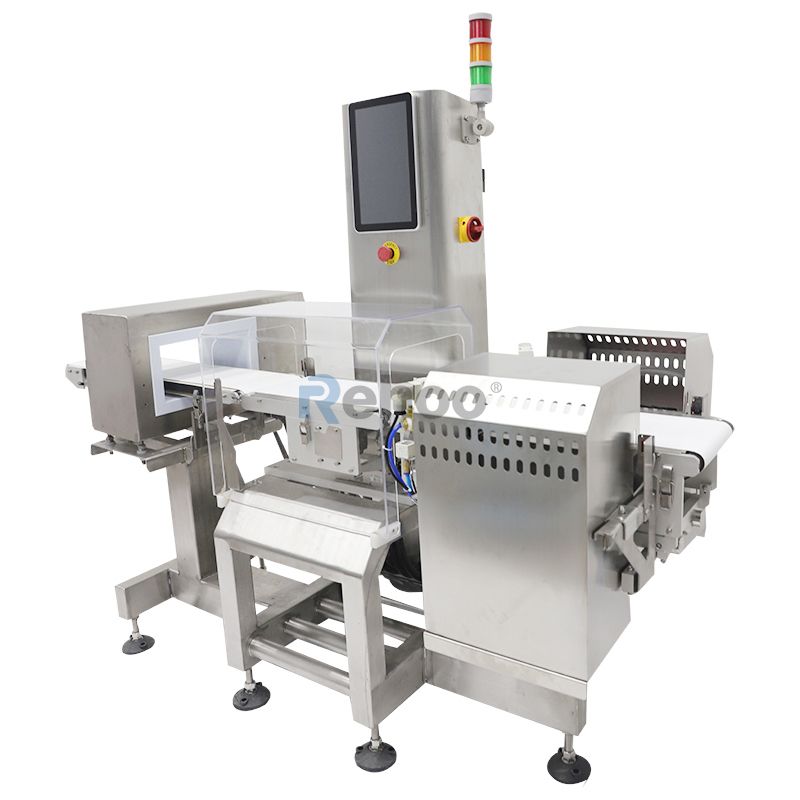

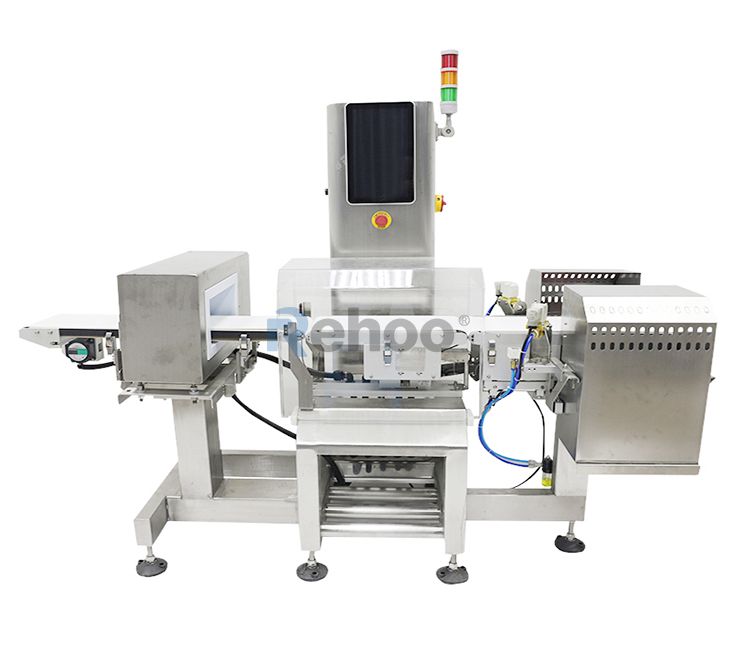

Metal Detector & Check Weigher Combo Machine

MDC-Combo II

Applied for packaged food,dairy chemical,pharmacy industrial


● All in one stainless steel frame

● Equipped with precise load cell and high speed DSP technology

● Dynamic weighing compensation and zero tracking

● 40 product memory, Easy to edit and save

● Fast preset shift,Automatic product study

● Directly Log output to USB flash disk

● 10 inch touch screen and friendly operation interface

● Multi-language optional

● Peripheral device connectable

● Rejector type optional


ModelMDC-Combo II
Detection/Weighing PrincipleElectric Induction/Strain Transducer
Sensitivity of Metal Detector(Lo Freq.)FE1.0-SUS2.5 (Hi Freq.)FE1.0-SUS2.0
Window Size(W*H)mm300*150mm
Available Tunnel Size (W*H)mm230*110mm
Weighing Accuracy± 0.2g
Weighing Range3~1000g
Weight of Calibration1000g
Weight Resolution0.1g
Belt Speed20~80m/min
Product SpeedMaximum 130pcs/min
Product Size RangeL:30~300mm W:30~230mm H:10~110mm
Dimension of Weighing Platform440mm(L)x230mm(W)
Type of LoadcellStrain Transducer
Type of Conveyor BeltFlat belt(Width: 230mm)
Type of RejectorAir Blast, Flap, Pusher
Type of KeypadTouch Screen
Alarm TypeLamp tower, Buzzer
Weighing RangeNominalNumeral Keypad Input: 0.1g~1100.0g (Nominal +Upper Limit, 0.1g Interval)
SpeedBelt Speed Set Range: 20~80m/min(Upper Limit due to Product Length)
Menu Content(Rejection Mode)Totally 40 Products Preset Include;Product Name,Product Length,Belt Speed,Nominal Weight, Upper Limit, Down Limit, Rejection Timer……
Level of protectionIP-20
Frame Material and SurfaceSUS304 Brushed,Mirror and Blasting
Machine Dimension1940(L)x700(W)x1330+100(H)mm(Waste Bin Excluded)
Height of Conveyor Surface750+100mm
Net Weight215kg(Wind Shield and Waste Bin Excluded)
Power SupplyAC200V~240V;50/60Hz (Single Phase)
Rated Power350W
Optional PartsWind Shield (Transparent)
