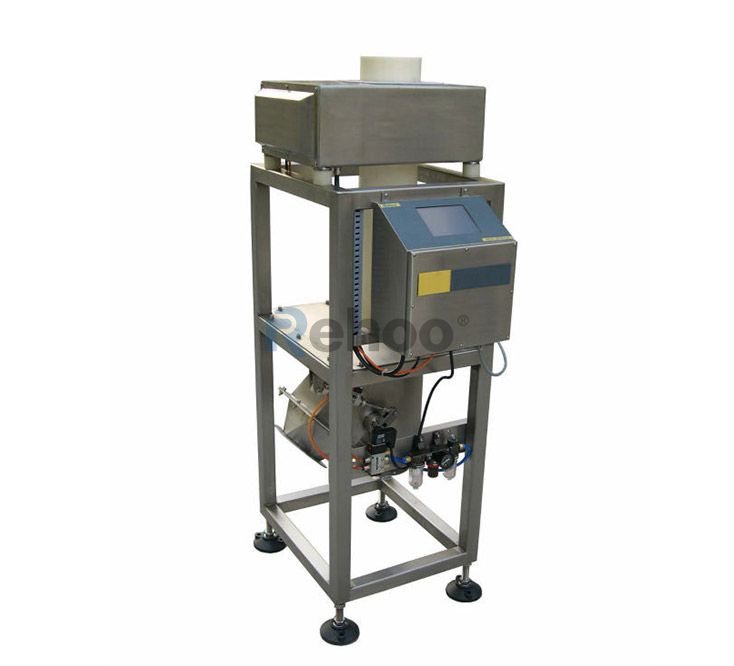

Metal Detector MDF

MDF

Applied to industrial pipeline metal detection

Features

● Stainless Steel conveyor with high waterproof level design

● 100 product preset, Easy to shift and edit

● 2000 logs memory,easy to look up and print out

● Based on friendly touch screen operation

● High speed metal detection unit

● Multi-function operation system and multi-language for option

● Advanced product's effective learn

● Variety of peripheral system connection and setup

● Detection frenquency optional.(Factory preset)

● Special reject system design, suitable for powder and granular bulk materials

Specifications

Specifications
ModelMDF
TheoryBalanced Coil
AdjustmentAutomatic or Manual
Standard tube sizeΦ120mm
Alarm modeBuzzer and Lamp(Optional)
Reject methodQuick Flap System
PowerAC110/220V 50-60HZ
     Rated output200W
Dimension420mm(L)*500mm(W)*1300±10mm(H)
Weight88kg


Sensitivity

Aperture SizeSensitive
100mmFe0.8mm Sus1.5mm
120mmFe1.0mm Sus2.0mm
150mmFe1.2mm Sus2.5mm
200mmFe1.5mm Sus3.0 mm
