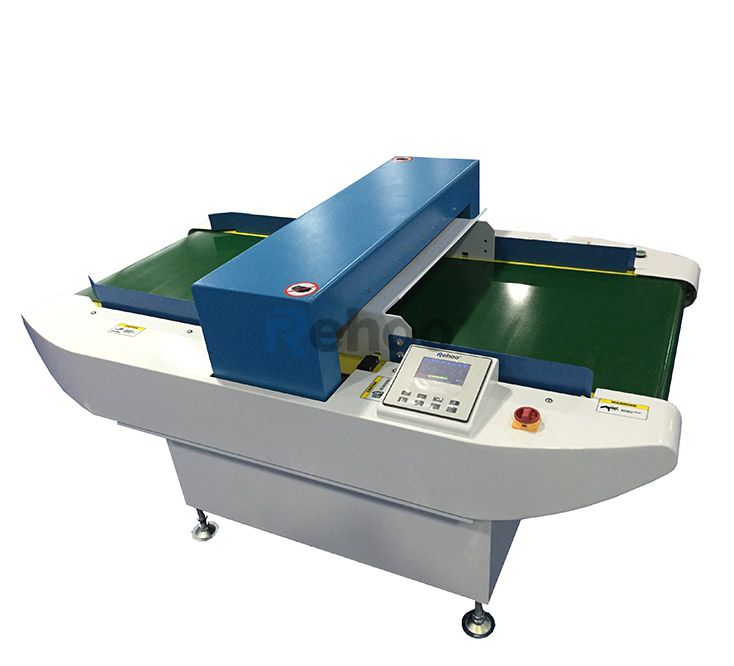

NDC-K

NDC-K

Designed for textile and garments industry

Features

● Cycled , 8 pairs of magnetic sensor, excellent anti-disturbance

● Innovation detection technology widely improves the sensitivity uniformity in the channel

● High accuracy detection location technology, LED indication

● Level setup indication and real-time sensitivity display

● Optional conveying mode after alarm

● Optional automatically restart

● Each group sensitivity of the probe with independent control and parameter adjustment

● Optional U disk output and the network interconnection ablility

Specifications

ModelNDC-K
Detection MethodMagnetic Induction
Detection Sensitivity0.8mm steel to small scissors
Detection Adjustment10 steps
Detection Width600mm
Alarm MethodBuzzer
Belt Speed32m/min
Power SourceAC100V-240V 50-60Hz
Rated OutputAppr.90W
Dimension1650mm(L)*1050mm(W)*970mm(H)
Net WeightAppr.240kg


Sensitivity

HeightSensitivityRemark
120mm0.8mm steel to small scissorsStandard type
160mm1.0mm steel to small scissorsOption at factory
180mm1.5mm steel to small scissorsOption at factory
200mm2.0mm steel to small scissorsOption at factory
