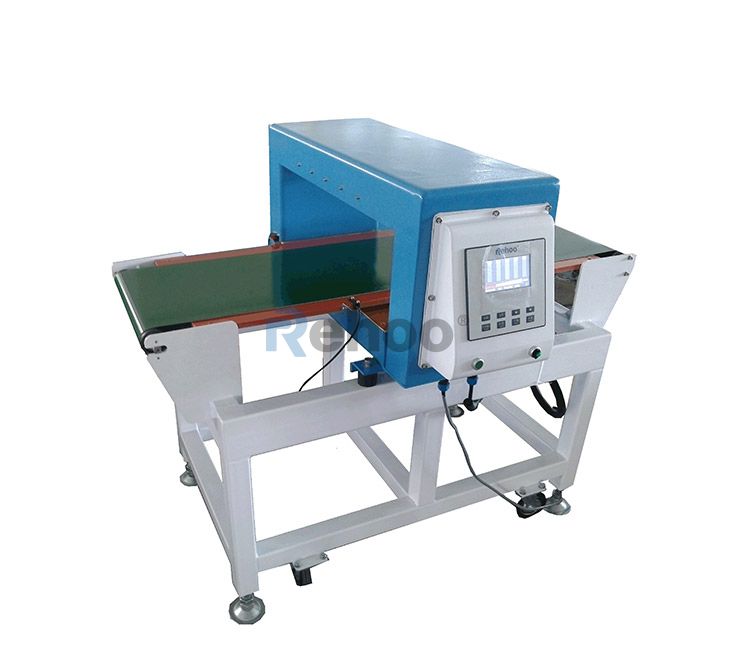

NDC-S

NDC-S

Especially designed for shoes industry

Features

●Cycled magnetic sensor, excellent anti-disturbance

●High accuracy detection location technology, LED indication

●Use LCD screen technology and based on multi-language operation system

●Level setup indication and real-time sensitivity display

●Optional conveying mode after alarm

●Optional automatically restart

●Reliability mechanical frame design, High stable during detection

●Designed for universal AC power source supply, switch power supply

Specifications

ModelNDC-S
Detection MethodMagnetic Induction
Detection Sensitivity0.8mm steel to small scissors
Detection AdjustmentMax.100 steps/channel
Detection Width350mm
Alarm MethodBuzzer
Belt Speed24m/min
Power SourceAC100V-240V 50 -60HZ
Rated OutputAppr.90W
Dimension1200mm(L)*860mm(W)*970mm(H)
WeightAppr.200kg


Sensitivity

HeightSensitivityRemark
120mm0.8mm steel to small scissorsStandard type
150mm1.0mm steel to small scissorsOption at factory
200mm1.2-1.5mm steel to small scissorsOption at factory
