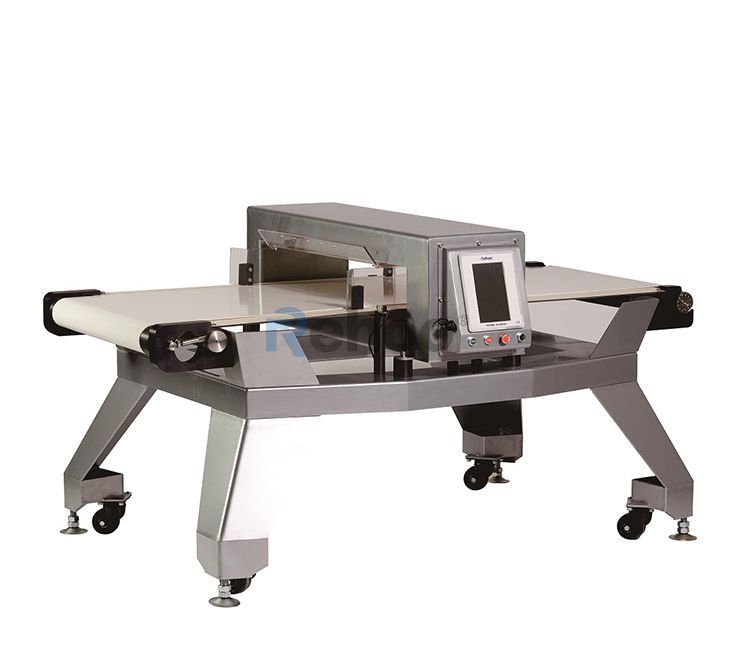

NDC-Maxtrix II
NDC-Maxtrix II
Designed for High-End garments and textile industry.
Features
●New design detection sensor, enhanced sensitivity and anti-interference.
●Advanced operation system and high-speed signal processing technology.
●7 inch touch screen and multi-language operation system.
●Multi-point broken needle locating and display.
●Individual parameters adjustment for each sensor.
●Large capacity detection log memory and automatic refresh.
●USB data output.
●Ethernet connection optional.
●On probe LED lamp for visual location.
●External START/STOP button or foot pedal.
Specifications
| Model | NDC-Matrix II |
| Detection Method | Magnetic Induction |
| Detection Sensitivity | Fe⌀0.8mm(height) |
| Detection Size(L*W) | 1485×600mm |
| Belt Size(C*W) | 3300mm×570mm |
| Alarm Method | Buzzer、LED lamp |
| Belt Speed | 35m/min（50Hz） |
| Power | AC100～240V，50Hz |
| Output | 140W |
| Machine Size（L×H×W） | 1560mm×1200mm×980mm |
| Packing Size（L×H×W） | 1610mm×1170mm×1020mm |
| Net Weight | 237Kg |
| Gross Weight | 310Kg |
