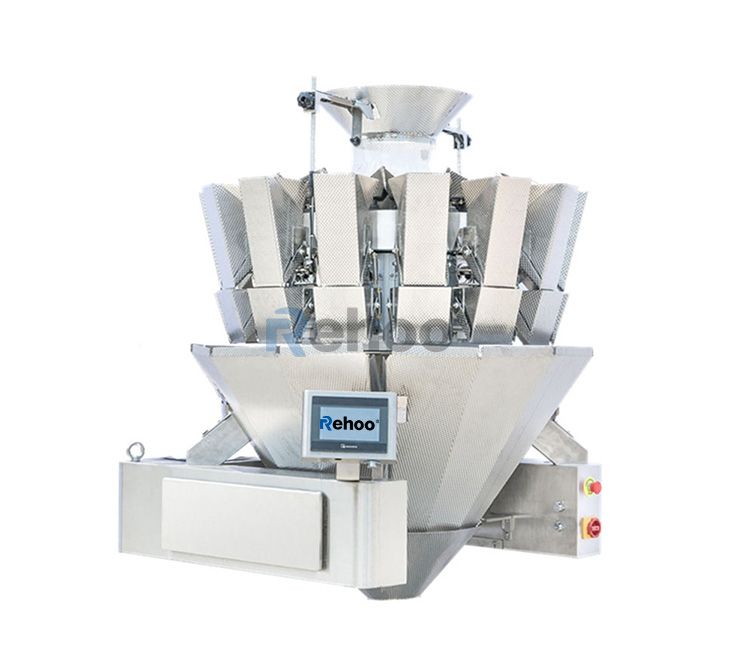

MHW-H10 Automatic Multihead Weigher
MHW-H10
It is suitable for weighing of granule, slice, roll or irregular shape materials such as cereal, pasta, candy, seed, chips, coffee bean, nut, puffy food, biscuit, chocolate, pet food, frozen foods, etc. It is also suitable for non-food industry such as screws, bolts and plastic components.
Features
· Multi-language HMI available.
· IP65 waterproof standard.
· Automatic or manual adjusting of linear feeding channels according to products difference.
· Load cell or photo sensor to detect feeding level of product.
· Preset Stagger dumping function to avoid blockage during product dropping.
· Production records can be checked and downloaded to PC.
· Food contact parts can be disassembled without tools, easy clean.
· Remote control and Ethernet available (by Option).
Specifications
| Model | MHW-H10L1.6 | MHW-H10L2.5 |
| Weighing Head | 10 | 10 |
| Weighing Range | 10-1500g | 10-3000g |
| Weighing Accuracy | 0.1-1.5g | 0.1-2g |
| Max. Speed | 70WPM | 70WPM |
| Bucket Capacity | 1600ml | 2500ml |
| Operation Panel | 7 inch touch screen / 10 inch for option | |
| Power Supply | AC220V ±10%， 50Hz(60Hz), | |
| Drive System | Step motor | |
| Packing Dimension | 1090(L)×1130(W)×1830(H) mm | |
| Gross Weight | 420KG | |
| Optional Devices | Dimple plate/Timing hopper/ Diverter device/10 inch touch screen/Teflon paint/Load cell top cone | |
