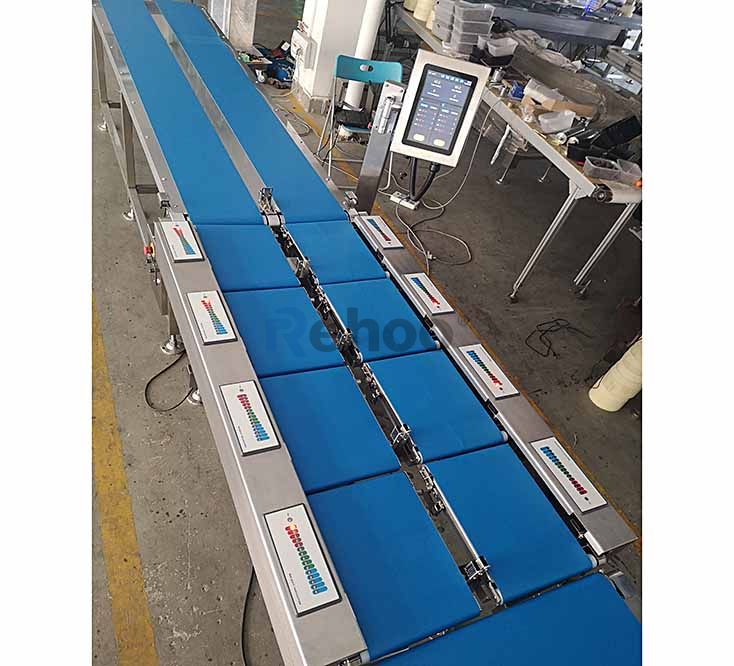

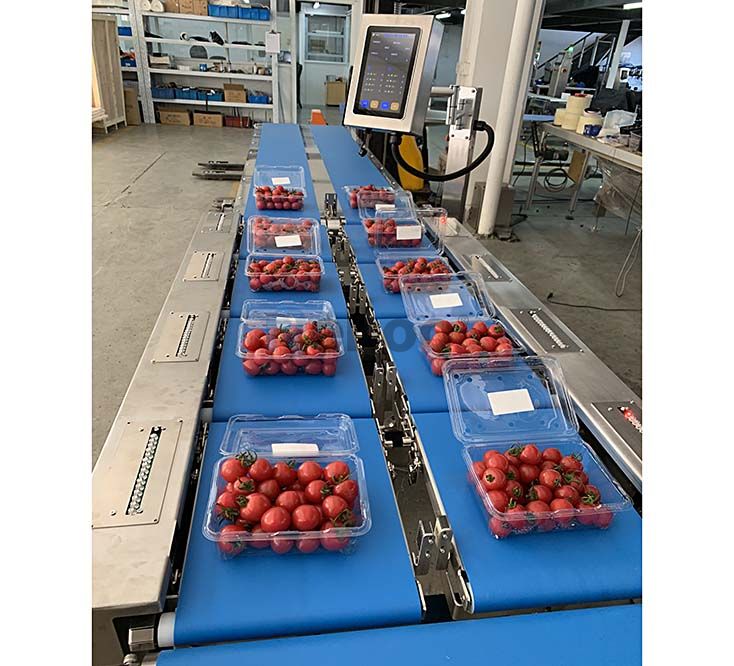

MHW-P8 Multi Stage Weigher Linear
MHW-P8
Widely used in vegetable ,fruit and fresh industry,fixed weighting calculation
Features
1. Strong stainless structure; Water proof design
2. Germany HBM Loadcell
3. 1500mm infeed conveyor length
4. 1500mm outfeed conveyor length

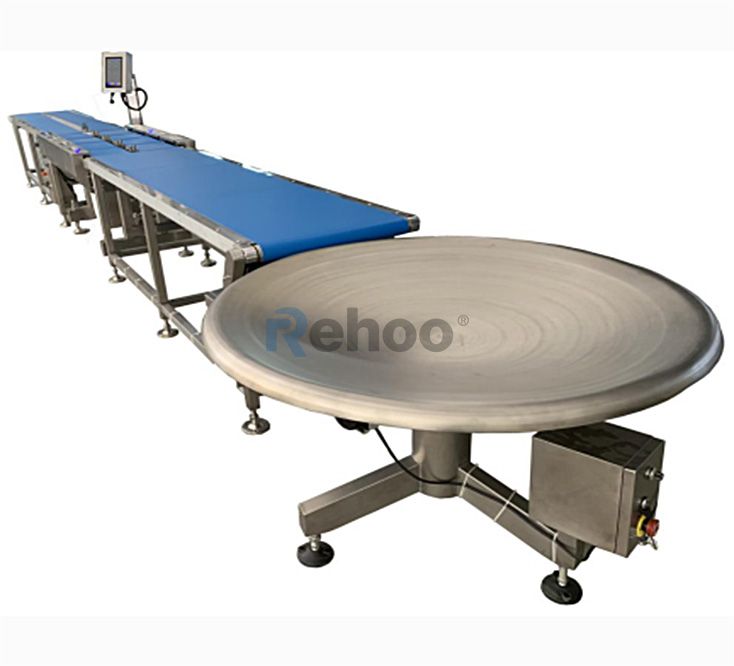

5. 1200mm diameter Turn Table
6. Food belt to comply with food and pharmaceutical hygiene standards
7. 100 products preset, easy to edit and recall, Automatic belt speed adjustment
8. Snapfit platform, easy for belt clean
9. USB data output
10. LED light for individual weighing table: red for less weight, blue for over weight, blue for ok weiht, yellow for alarm
11. Industrial computer with Android system
12. Multi-language optional
Specifications
| Model | MHW-P8/P10 |
| Number of scale | 8 sets/10 sets |
| Weighing Capacity for each unit | 0～2000g |
| Accuracy | ±1g |
| Platform size | 350mmx240mm |
| Weighing Scale size | Double-beam load cell |
| Speed | 15-45m/min |
| Belt width | 240mm |
| Display | Chinese, English |
| Minimum Scale | 0.1g |
| Construction | 304SUS, Polishing |
| Machine size | 1480mm x 900mm |
| Weight | Appr. 200Kg |
| Rated output | Appr. 400W |
| Power | AC110/220V 50-60Hz |
| IP rating | IP65 |
