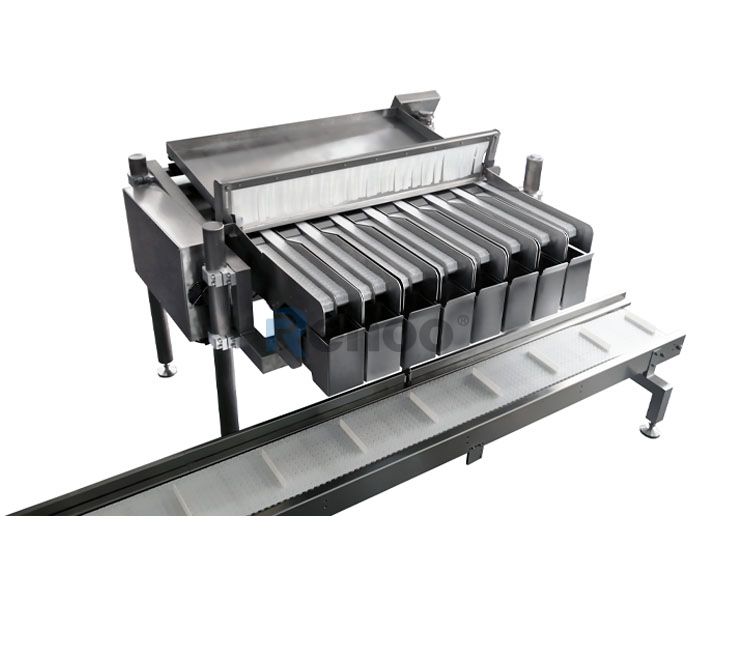

MHW-F8 Counterweight
MHW-F8
It is suitable for fruits and vegetables such as maiden fruit, cherry, lychee, apricot, etc. It can accurately and quantitatively weigh the product according to the preset weight.
Features
1.Distribute the product evenly into the corresponding hopper of 8 vibration channels, and complete the quantitative weighing of the set weight.
2.Except for the motor, the whole structure is made of food grade 304 stainless steel, which fully meets the requirements of the gmp standard.
3.The parts in contact with the whole machine can be easily cleaned.
4.This machine can be matched with various packaging machines to form a production line.
5.Fully intelligent and user-friendly design using the Willen color human-machine interface.
6.Modular design of control system, simple and fast equipment maintenance and low cost.
7. Using high-precision digital sensors, fast sampling speed and high accuracy.
8.Can be cleared manually or automatically, and dynamic zero tracking.
9. Reliable performance, simple operation, stable operation, low noise, easy maintenance and corrosion resistance.
10.Various product adjustment parameter recipes can be stored for later use, and up to 50 recipes can be stored.
Specifications
| Single weighing range | ≤1.5kg |
| Weighing accuracy range | Single fruit weight |
| Weighing material size | ≤4cm (round material) |
| Hopper size | 92mm*123mm |
| Product Size | 1512mm*1200mm*1158mm |
| Transfer speed | 10-30 times / min |
| Counterweight method | Combined |
Configuration table
| Brand | Name | Specifications / model | Single |
| Willen | touch screen | 7 inch with network port tk8071ip | 1 |
| CNAC | sensor | 10kg aluminum | 8 |
| OMRON | Switching power supply | ac220v input power 350w dc24v output | 1 |
| Somo | Main switch | 32A | 1 |
| Siemens | Inverter | v20 inverter single phase 220v 0.37kw | 1 |
| Boshuo | Motor | Three-phase 220v, power 250w Hollow shaft 25, speed ratio 10 | 1 |
| AirTAC | Air source processor | AFC20001 | 1 |
| Schneider | Emergency stop switch | With self-locking, 1 normally closed, ip65 | 1 |
