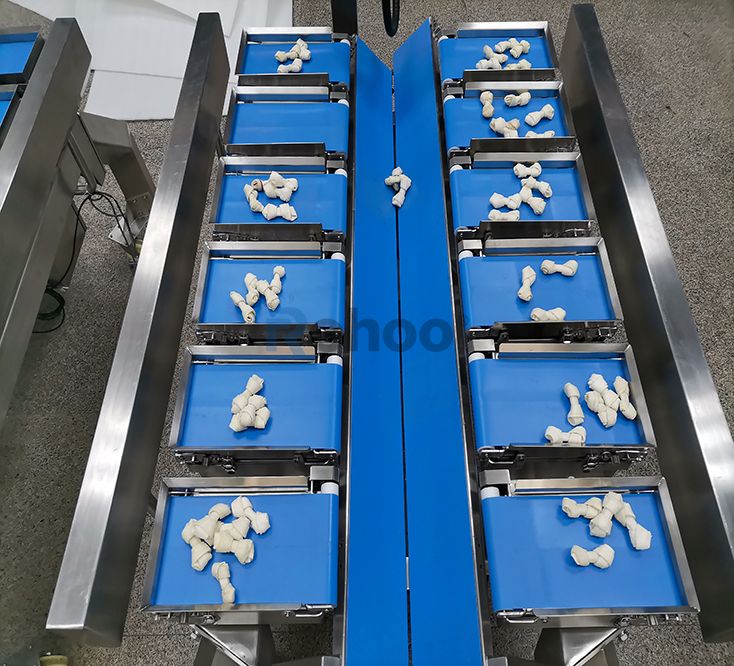

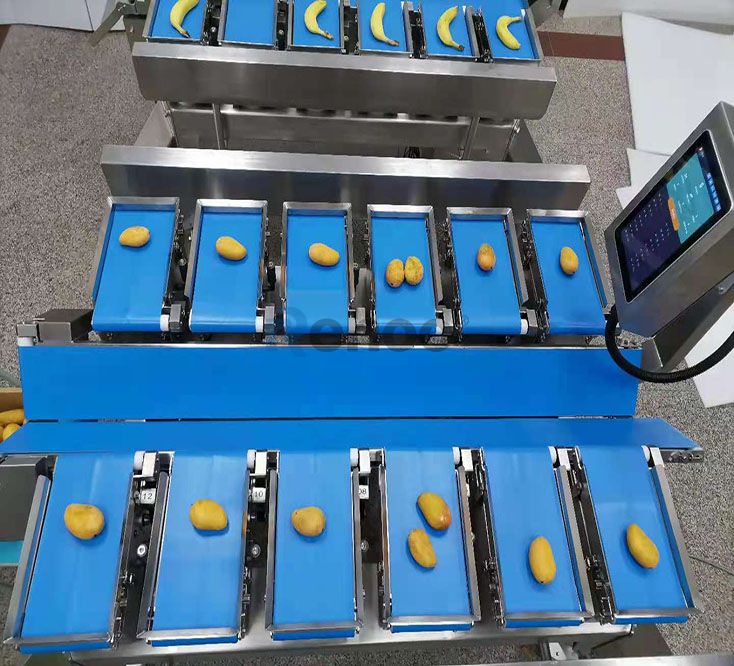

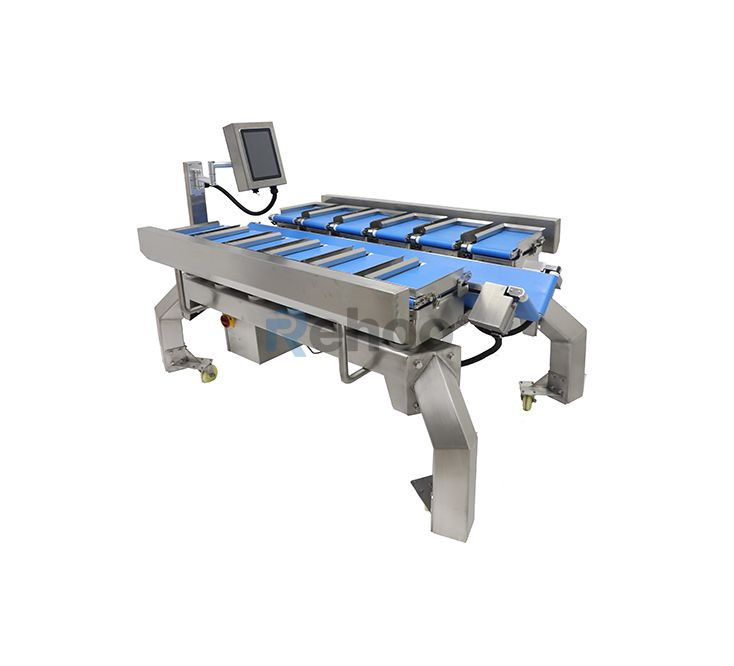

V Type Semi-Automatic Combinational Weighing Scale
MHW-V12
Widely used in vegetable and fruit for round and easy-to-roll products, fixed weighting calculation
A direct solution for fixed weight package
Avoid weighing scale
Avoid material waste
Working efficiency improvement
Reduce labor cost
Features
●12 units high precision scales with conveyor belt
●High-speed combination arithmetic
●Snapfit platform, easy for belt clean
●Oriental Motor
●HBM loadcell
●Multi-language operation
●100 products memory
●Made from SUS304 with water proof design
●Optional customer define operation table
Specifications
| Model | MHW-V12 | Speed | 10-30times/min |
| Combinational Range | 8-12000g | Number of scale | 12units |
| Max Range for each unit | 1000g | Weighing Cell | Strain gauge |
| Minimum resolution | 0.1g | Net weight | Appr. 150kg |
| Platform Size | 310mm(L)x150mm(W) | Operational temperate | 0-40C |
| Conveyor size | 1515mm(L)x205mm | Humidity | 30-85% no condensation |
| Machine Dimension | 1600mm(L)x935mmx760mm(H) | Rated power | Max .650w |
