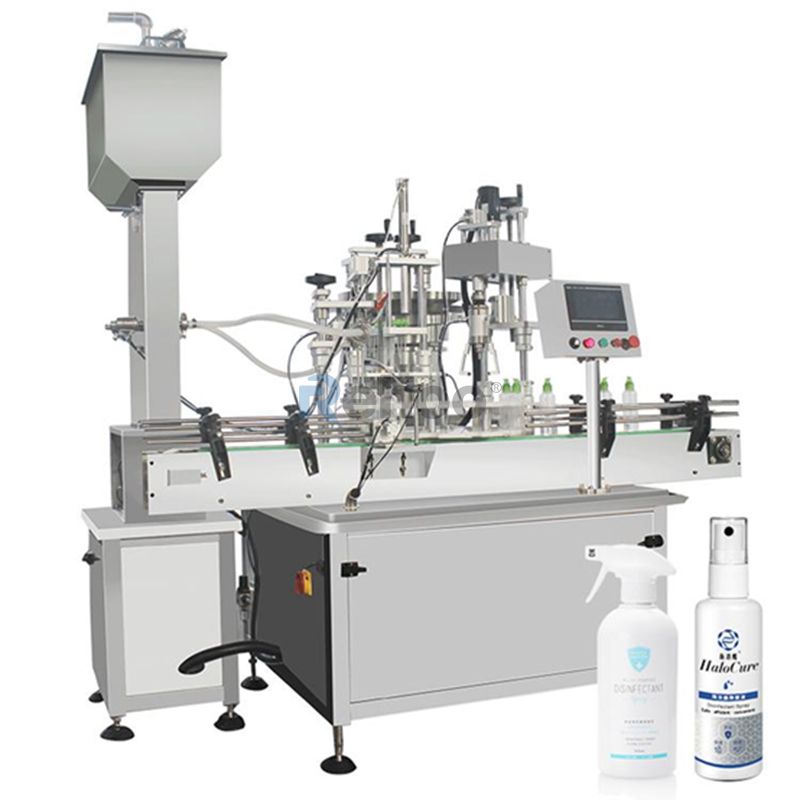

Filling and Capping Machine RFC-201

RFC-201

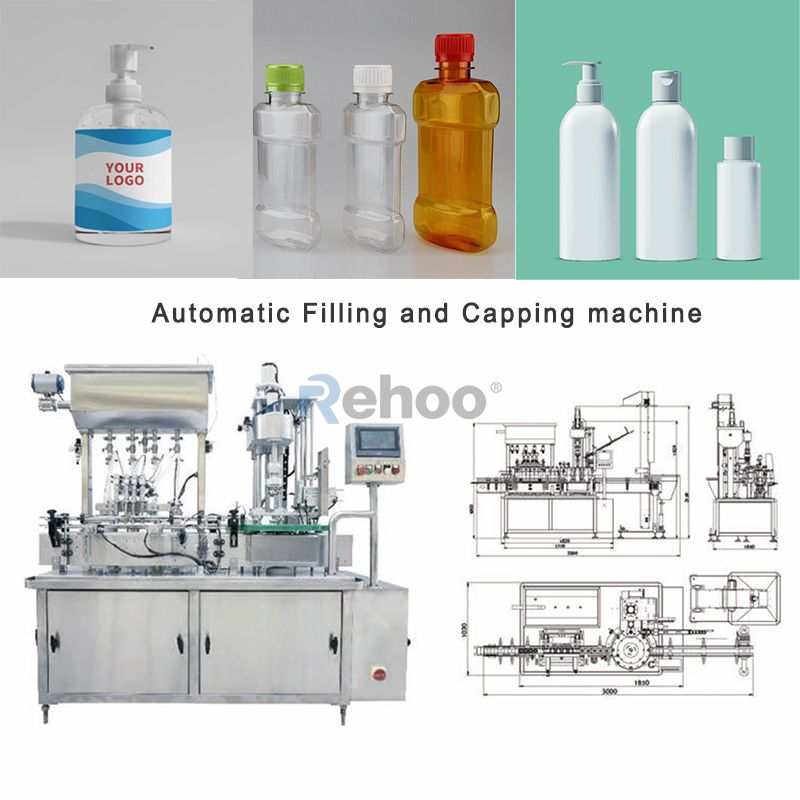

Automatic Filling and Capping Machine


Features

1.Easy to install,simple to operate and require minium maintenance for maximum performance and long machine lifetime
2.Integrated digital control with PLC and Touch Screen controls for easy operation.All activities are controlled by high techonlogy Panasonic servo system
3.Protected with safety shield meet strict safety restriction
4.Sturdy conveyor system driven by high quality motor.Adjustable conveyor guide rails to accommodate with different products
5.Anti-dripping design to enable the clean conveyor surface and perfect finished product
6. No bottle-no fill system
7.Bottle jammed detection

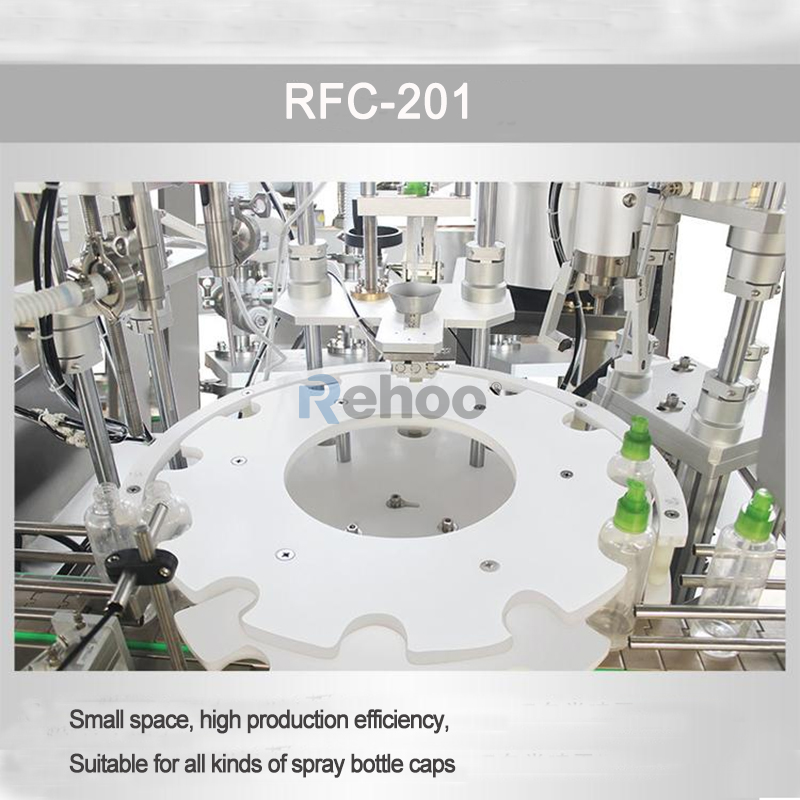

8.Positioned by star wheel.It will automatic stop when no bottle or position is not accurately
9.Fully adjustable for different bottle with different star wheel and capping head
10.Adjustable electronic torque values to eliminate damage to caps and reduce insert wear

Specifications

ProcessingFilling+capping

Control

PLC+ Touch Screen
Filling nozzles1/2/4/6
Machinery Capacity5-35Bottles/min
Filling volume5ml-30ml
Filling MaterialBeer, Milk, Water, Oil, Juice, ethyl alcohol
Voltage220V 50-60Hz
Dimension(L*W*H)2000mm*1500mm*1900mm


Number
Name
Brand
Quantity
Remark
1
PLC
Japan   Mitsubishi
1

2
Touch screen
China Kinco
1

3
Servo system
Japan Panasonic
2

4
Solenoid valve
China AIRTAC
5

5
Pneumatic component
China AIRTAC
2

6
Low-voltage appliances
France Schneider
6

7
Filling valve
China ESG
1/2/4
