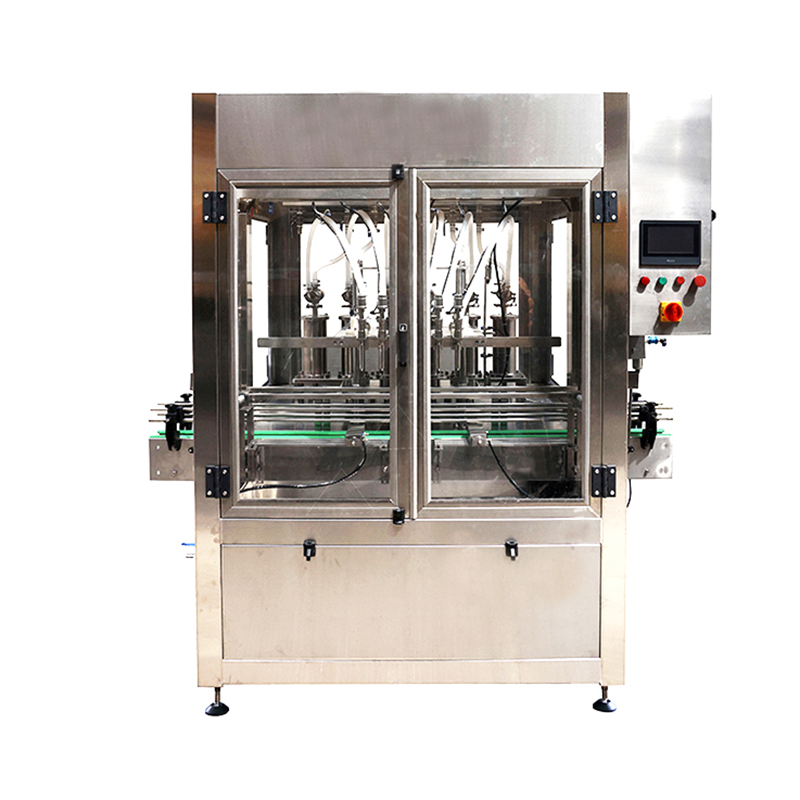

Filling Machine RGZ-6

RGZ-6

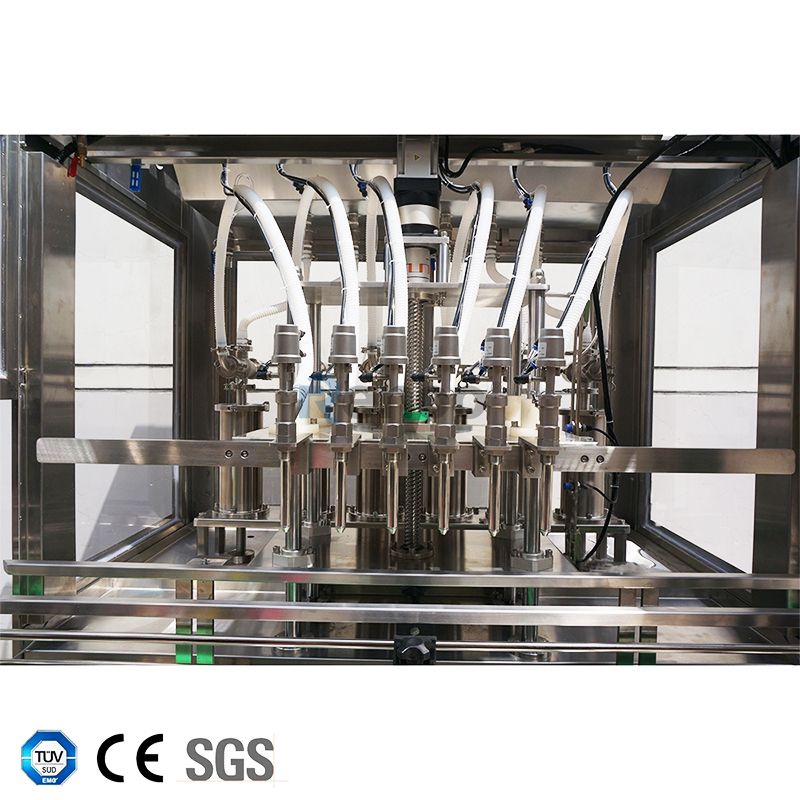

Automatic Piston filling machine

Features

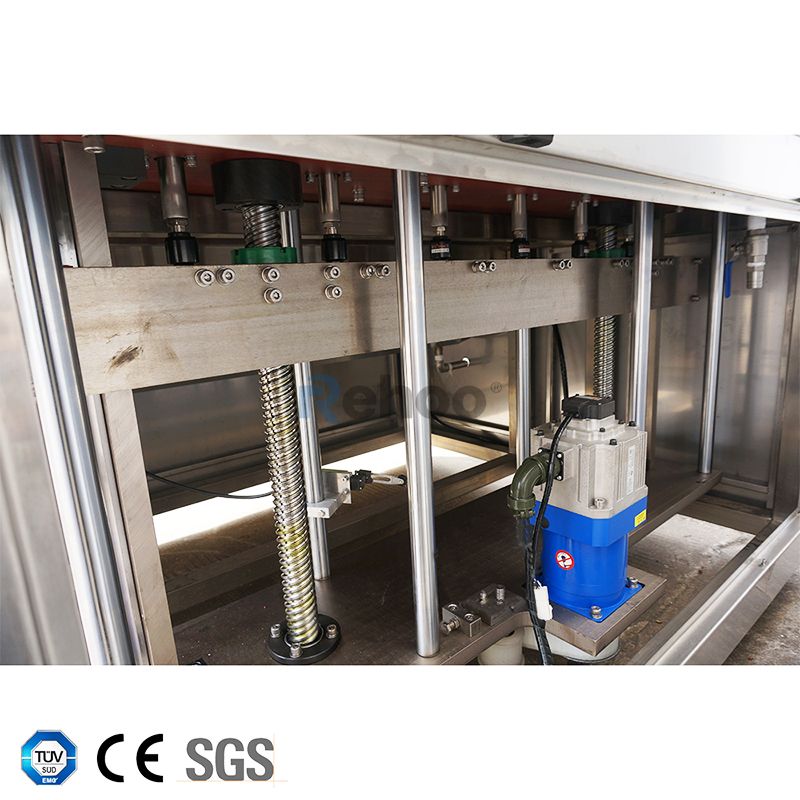

1.Controlled by Panasonic servo system
2.Controllable and various filling speed
3.Integrated digital control with Mitsubishi PLC and Touch Screen controls
4.Designed for easy change-over and cleaning
5.GMP standard Stainless Steel
6.No bottle-no fill system
7.Warning light and buzz to inform operator production error
8.Quick change of volume with digital readout

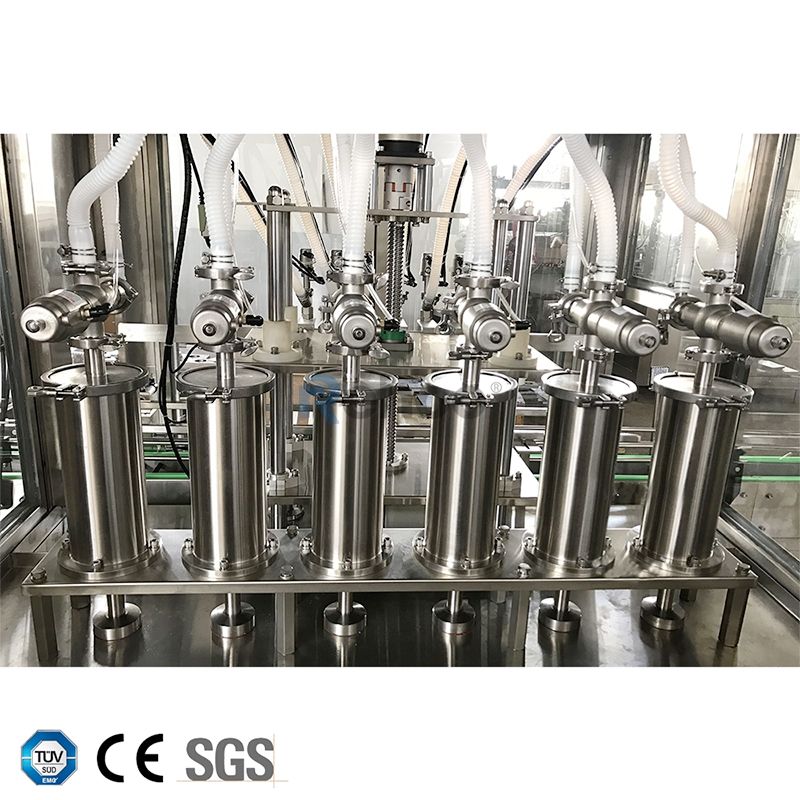

9.Individual piston adjustment for fine tuning
10.Fully automatic rise for nozzles,adjustment can be done on touch screen
11.Nozzles can set to be above bottle mouth or bottom up,synchronizing with liquid level(beneath or above) to eliminate bubbling of foamy liquids
12.Adjustable speed while filling,it can fill slowly at the beginning and then accelerate to faster speed,finally slow down once again to finish up,This can prevent foamy liquids from bubbling and avoid spillage

Specifications


Filling Capacity
20-100cc/50-500cc/100-1000cc
Contact Part Material
304/ 316L
Supply Voltage
220 / 380V,50-60 ,3 Phas
Power Consumption
1.5KW
Air Pressure
4-6kg
Dimension
3000*950*1770mm
Filling head Options
2/4/6/8/12/16/20
Precise
±0.5%
Power source
220V;50Hz
Air source

0.6MPa

Type Heads
 Capacity(bottle/hour)
Precise Size of Machine(mm)
 Power
12
1L:3500
2200×1500×2200
5KW
8
1L:2200
2000×1100×2200
4KW
6
1L:1800
2000×1100×2200
3KW
4
1L:800-1000
1600×1100×2200
3KW
2
1L:400-500
1600×1100×2200
3KW
