RH-100C
RH-100C

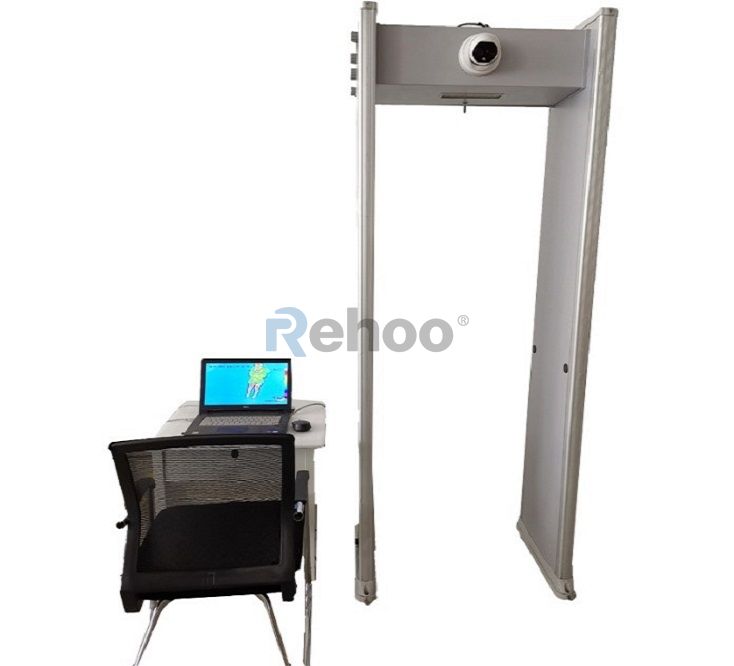

RH-100C Walkthrough Metal Detector with Temperature Measurement integrates temperature measurement adopting the thermal imagery technology, realizes non- contact temperature measurement.
Features
Smart Functions:
1.Temperature exception detection
2.Linkage for audible alarm
3.Linkage of white strobe light alarm
4.Supports face capture function, which can perform temperature detection and capture on 20 people faces at the same time
5.Support face tracking and scoring, multi-frame recognition, can automatically filter and output the best face image
Thermal Imaging Functions:
1.Uncooled sensor, resolution: 160 x 120
2.Supports AGC4.0, DDE, and 3DNR
3.Supports dual-light fusion image
4.Supports visible light and thermal imaging frame over lay
5.15 pseudo colors: white, black , red, etc.
Specifications
| Vertical external dimensions | 2230mm (H)×835mm (W)×580mm (D) |
| Vertical internal dimensions | 1990mm (H)×700mm (W)×500mm (D) |
| Working voltage | AC90V~240V 50/60Hz |
| Power consumption | <15W(lowest power consumption) |
| Detection Zones | 6-18 Zones |
| Sensitivity | 0~999 levels adjustable |
| Working environment temperature | -0℃~50℃ |
| Accuracy range of location detection of metal | Maximum sensitivity<6g metal |
| Operating frequency range | 1-100 frequency |
| Weight | 65KG |
