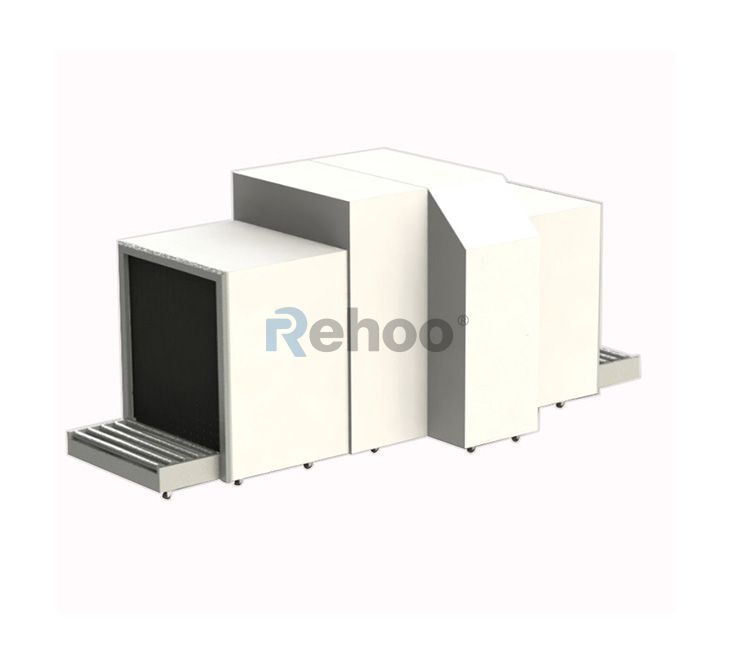

X-ray Baggage Scanner with Dual View & Dual Energy
MDS-150180D
X-ray Baggage Scanner Dual View & Dual Energy is widely used in the public place security inspection of baggage, goods and package. Such as airport, subway, high-speed rail passenger station/hub center, long-distance passenger station, highway checkpoint
Features
X-ray Generator：
Generation direction: Up-Bottom & Side view
Tube voltage: 200kV
Tube current: 0.4~1.0mA
Cooling mode/ duty cycle: sealed oil / 100%
Image Processing System：
X-ray sensor: L-shaped photodiode detector
Display: 17-inch high-definition LCD display
Configuration:
International brand electrical components
Industrial PLC circuit control,
Capacitance integral analog conversion, clear image
Industrial computer, long-term stable and reliable system
Ergonomic principle reading system,
Radiation protection system (close to natural background)
International brand electrical components
Industrial PLC circuit control,
Capacitance integral analog conversion, clear image
Industrial computer, long-term stable and reliable system
Ergonomic principle reading system,
Radiation protection system (close to natural background)
Specifications
| Model | MDS-150180D |

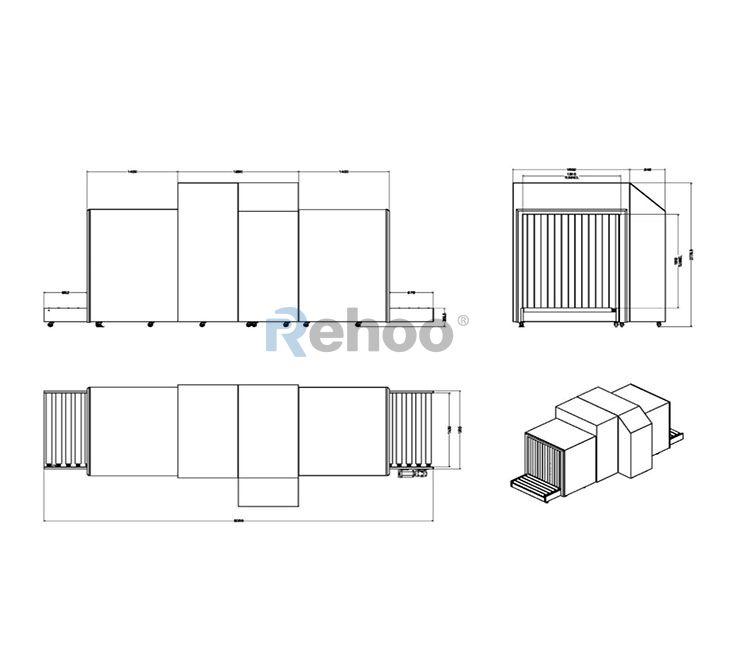

| Dimensions | 8000mm (L) * 2350mm (W) * 2778.5mm (H) |
| Tunnel size | 1510mm (W) * 1810mm (H) |
| Conveyor speed | 0.20 ~ 0.22m/s |
| Conveyor height | 358.5mm |
| Weight | 5000Kg |
| Storage temperature / humidity | -40 ℃ ± 3 ℃ ~ +60 ℃ ± 2 ℃ / 5% ~ 95% (no condensation) |
| Operating temperature / humidity | 0 ℃ ± 3 ℃ ~ + 40 ℃ ± 2 ℃ / 5% ~ 95% (no condensation) |
| Power | AC220 V (-10% to + 10%), 50Hz ± 3Hz |
| Power consumption | 3KVA Max |
| Wire resolution | Up-Bottom view Angle: 38AWG |
| Side view Angle | 38AWG |
| Penetration resolution | Up-Bottom view Angle: 30AWG |
| Side view Angle | 30AWG |
| Spatial resolution | UP-Bottom view Angle: horizontal /vertical Ф1.3mm Side view Angle: horizontal / vertical Ф1.3mm |
| Penetration | Up-Bottom view Angle:50mm Steel Side view Angle: 50mm Steel |
| Noise | < 55db |
