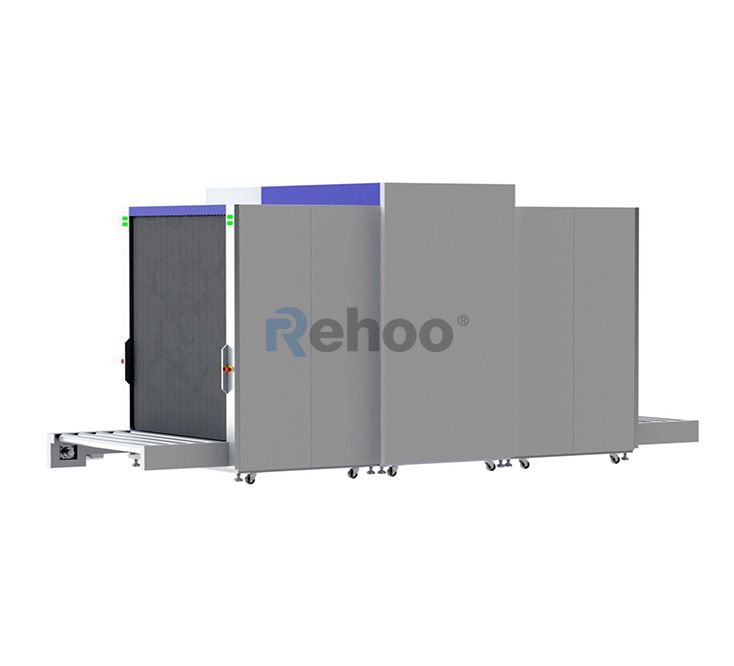

X-ray Baggage Scanner
MDS-150180
X-ray baggage scanners operate based on the x-ray penetration principle. Widely used in national security, which covers the national research institutions, detection centers, courts, prisons, procuratorates, Army, airports, subway and railway stations, docks, schools, embassies, tourist attraction, logistics, big events etc.
Features
X-ray Generator：
Generation direction: Up & Edge-lit
Tube voltage: 200kV
Tube current: 1.0mA
Cooling/ duty cycle: sealed oil / 100%
Generation angle: 80 °
Configuration：
International brand electrical components
Industrial PLC circuit control,
Capacitance integral analog conversion, clear image
Industrial computer, long-term stable and reliable system
Ergonomic principle reading system,
Radiation protection system (close to natural background)

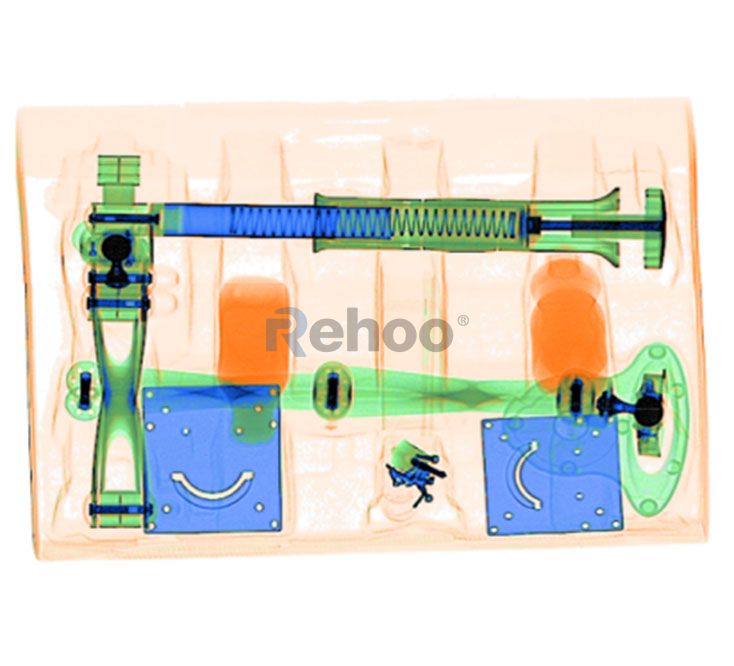

Image Processing:
Color / black&white,
Organic / inorganic,
Super enhancement,
Edge enhancement,
Partial enhancement,
Grayscale scanning,
Image restoration,
Zoom in / out,
High / low energy penetration,
Continuous observation,
Playback (50),
Image storage（>10 w pic.)
One key shut-down,
High density alarm,
Drug and explosive powder detection
Built-in Automatic self-diagnosis
Specifications
| Model | MDS-150180 |

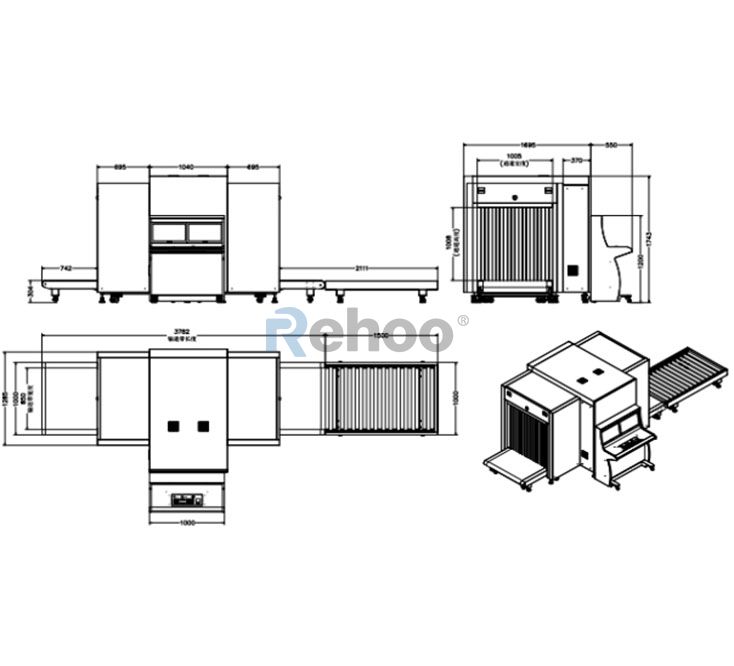

| Dimensions | 5130mm(L)*2725mm (W)*2446mm (H) |
| Tunnel size | 1510mm (W)*1810mm (H) |
| Conveyor speed | 0.20 m/s |
| Conveyor height | 350mm |
| Weight | 3500Kg |
| Storage temperature / humidity | -40 ℃ ± 3 ℃ ~ +60 ℃ ± 2 ℃ / 5% ~ 95% (no condensation) |
| Operating temperature / humidity | 0 ℃ ± 3 ℃ ~ + 40 ℃ ± 2 ℃ / 5% ~ 95% (no condensation) |
| Power | AC220 V (-10% to + 10%), 50Hz ± 3Hz |
| Power consumption | 3KVA |
| Penetration | 60mm Steel Plate |
| Wire resolution | 40AWG |
| Penetration resolution | 32AWG |
| Spatial resolution | horizontalФ1.0mm vertical Ф1.0mm |
